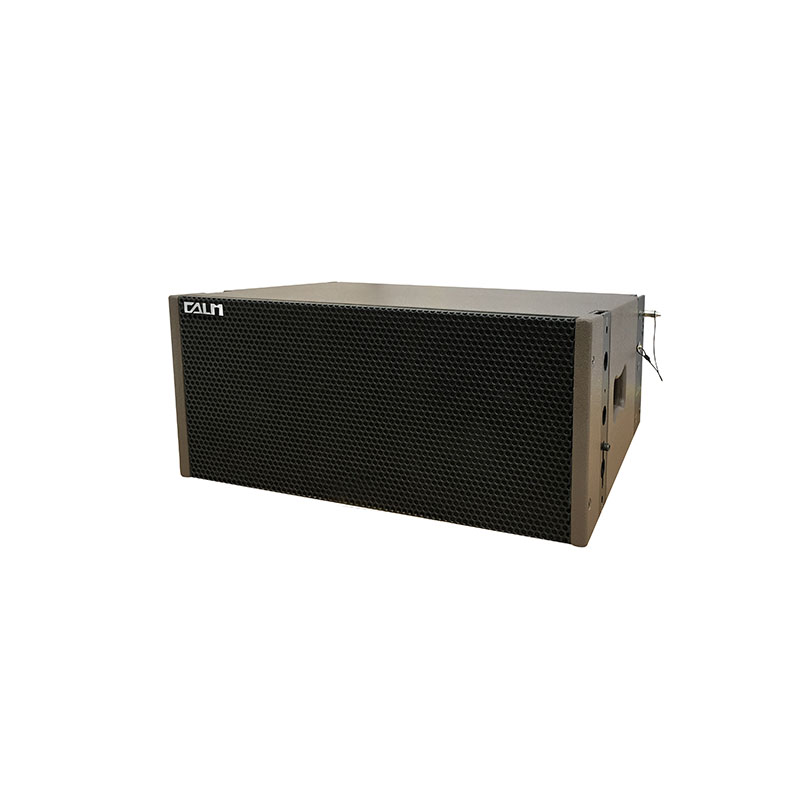

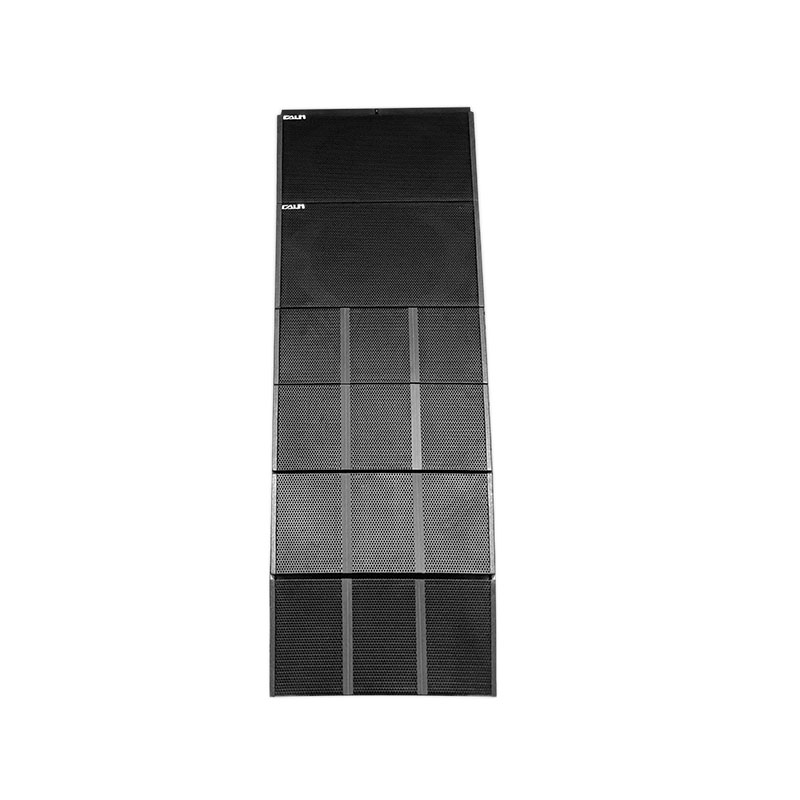

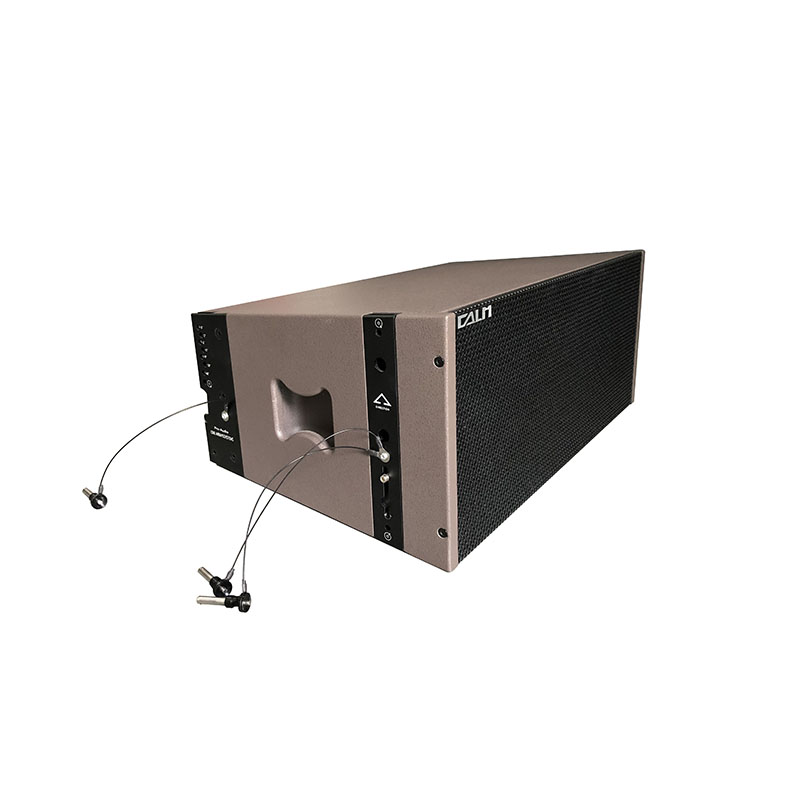

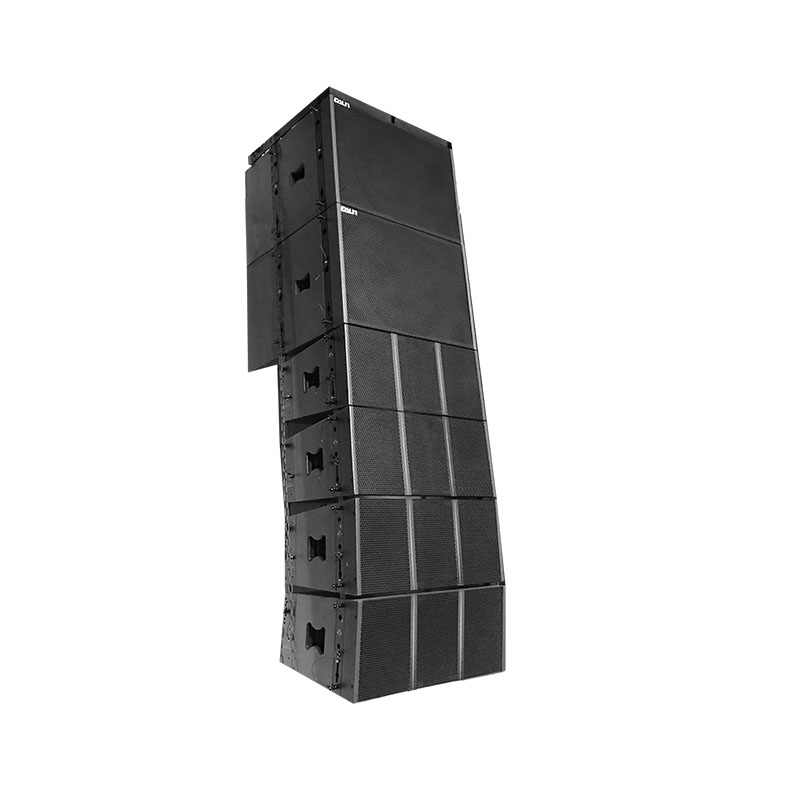

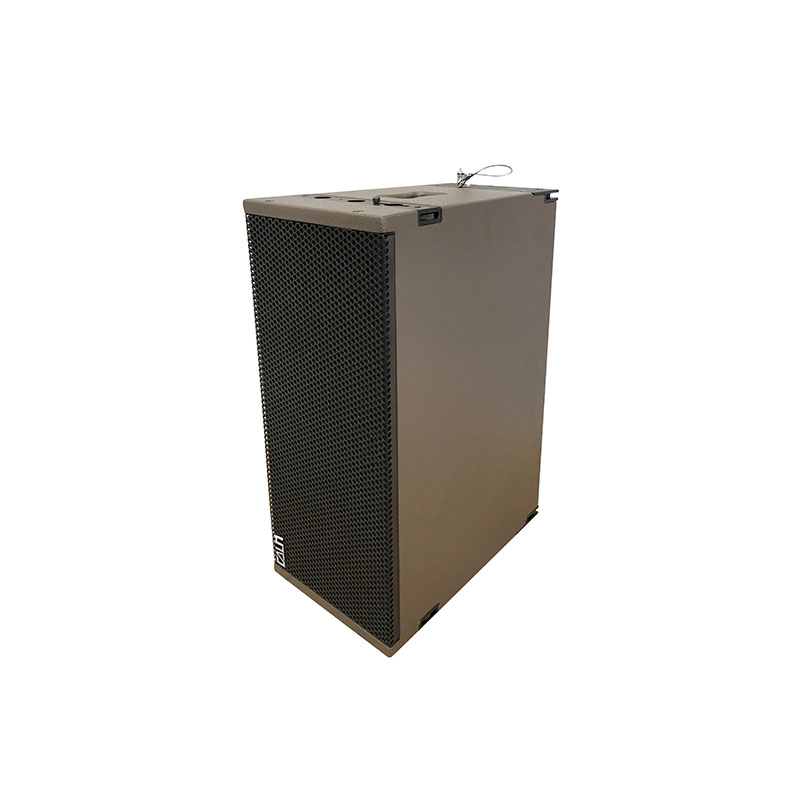

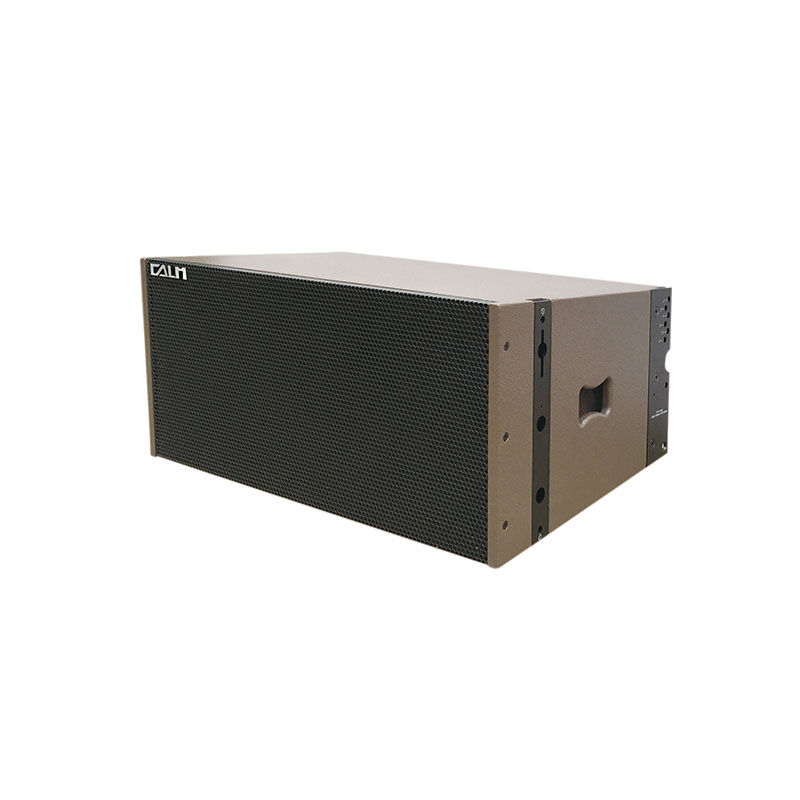

LA2系列兩分頻線性陣列揚聲器,是一款兩分頻、緊湊型、雙低音、多高音的演繹界新寵。采用科盟公司特別設計的線性箱體，使聲干涉到最低.水平覆蓋均勻、垂直指向性強、輻射區內聲能衰減較少。其顯著持點是：安裝快速、降低工作量；同時提供精確的聲音表現。適用于演唱會、流動動演出、體育場館、大型劇院等不同的聲場環境需求。該系列線陣音箱均有平面網和V字形面網兩種外觀進行選擇。同時針對不同的聲場環境，科盟公司為你配出3色箱體：咖啡色、黑色、白色！使各種環境的固定安裝變得不再枯燥與乏味。
| 型號Model | LA2206P | LA2208P | LA2210P | LA2212P |
| 頻響范圍Frequency Response | 65Hz~20KHz | 60Hz~20KHz | 50Hz~20KHz | 45Hz~20KHz |
| 低音 LF Driver | 6.5">2(100Magnet35mm) | 8"X2(156 Magnet 65mm) | 10"X2(156 Magnet 65mm) or NEO | 12"X2(200 Magnet 75mm) or NEO |
| 高音HF Driver | 34mmx1 | 34mmX2 or 44mmX2(NEO) | 34mmx2 or 44mmX2(NEO) | 34mmx3 or 44mmX3(NEO) |
| 額定功率Rated Power | LF:200W(100WX2) | LF:400W(200WX2) | LF:500W(250WX2) | LF:700W(350WX2) |
| HF:50W(50WX1) | HF:100W(50WX2) | HF:100W(50WX2) | HF:150W(50WX3) | |
| 峰值功率Peak Power | LF:800W | LF:1600W | LF:2000W | LF:2800W |
| HF:200W | HF:400W | HF:400W | HF:600W | |
| 阻抗Impedance | LF:16Ωor8Ω | LF:16Ω | LF:16Ω | LF:16Ωor8Ω |
| HF:16Ω or8Ω | HF:16Ω | HF:16Ω | HF:24Ω | |
| 靈敏度Sensitivity(1W/1m)dB | 102dB(1w@1m) | 103dB(1w@1m) | 103dB(1w@1m) | 104dB(1w@1m) |
| 連續聲壓級Maximum Continuous SPL | 123dB(Cmax@1m) | 125dB(Cmax@1m) | 127dB(Cmax@1m) | 129dB(Cmax@1m) |
| 最大聲壓級Maximum Peak SPL | 133dB(Pmax@1m) | 135dB(Pmax@1m) | 137dB(Pmax@1m) | 139dB(Pmax@1m) |
| 擴散角度 Dispersion(-6dB) | 90°Horx7.5°VerHF-Horn | 90°Horx7.5°Ver HF-Horn | 93°HorX8°Ver HF-Horn | 90°HorX7.5°Ver HF-Horn |
| 箱體材質 Material | 18mm(0.7")PLYwood-15mm(0.6") | 18mm(0.7")PLYwood+15mm(0.6") | 18mm(0.7")PLYwood+15mm(0.6") | 18mm(0.7")PLYwood+15mm(0.6") |
| 連接方法 Connectors | SPEAKON NL4x2 | SPEAKON NL4X2 | SPEAKON NL4X2 | SPEAKON NL4X2 |

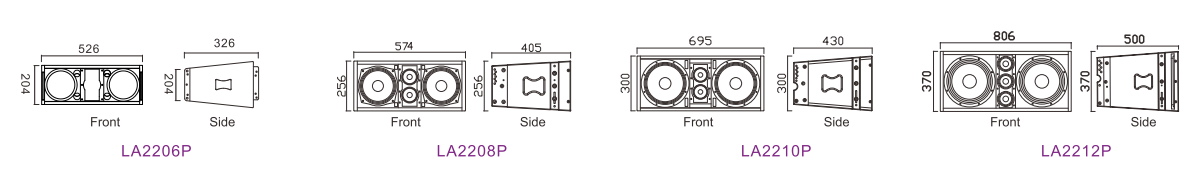

| 平面網箱體尺寸 Dimensions | L526xW326xH204mm | L574XW405XH256mm | L695XW430XH300mm | L806XW500XH370mm |
| 重量Net Weight(kg) | 15Kg | 21Kg /19Kg (NEO) | 25Kg / 21Kg (NEO) | 25Kg (NEO) |
